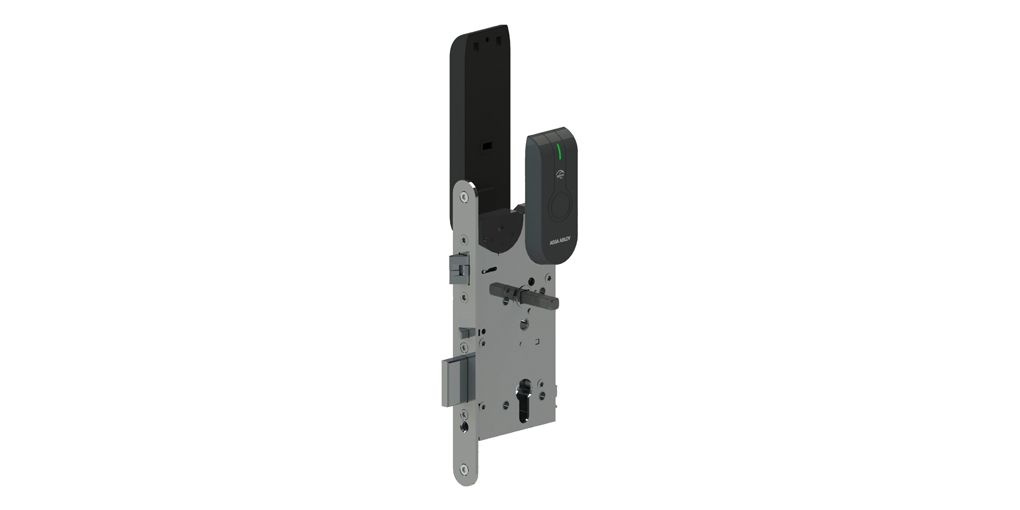

Aperio L100

EURO profile electromechanical lock with built-in RFID reader, sensors and radio communication. The lock communicates with the access control system via the Aperio HUB, the decision is made by the access control system.

The sensors built into the lock are able to provide the following feedback: door closed, lock tongue out, lock tongue inside, inner handle pressed, lock insert in use. It is possible to program 10 emergency cards, which also work offline. Handle-key center distance 72 or 92 mm; camshaft: 8.9 mm; Power supply: 1 AA lithium (FR6) battery; battery life: 100,000 operations, up to 3 years; distance from the HUB: 5 -25 m; protection: IP44 (internal), IP54 (external); operating temperature: -10 ° C to + 60 ° C; relative humidity: <85% non-condensing; status feedback: LED; dimensions: Lock: 168.5 x 16.5 x 88/93/98 mm; inside of the reader: 167.8 x 48 x 20 mm; outer part: 101.8 x 43.7 x 15 mm
