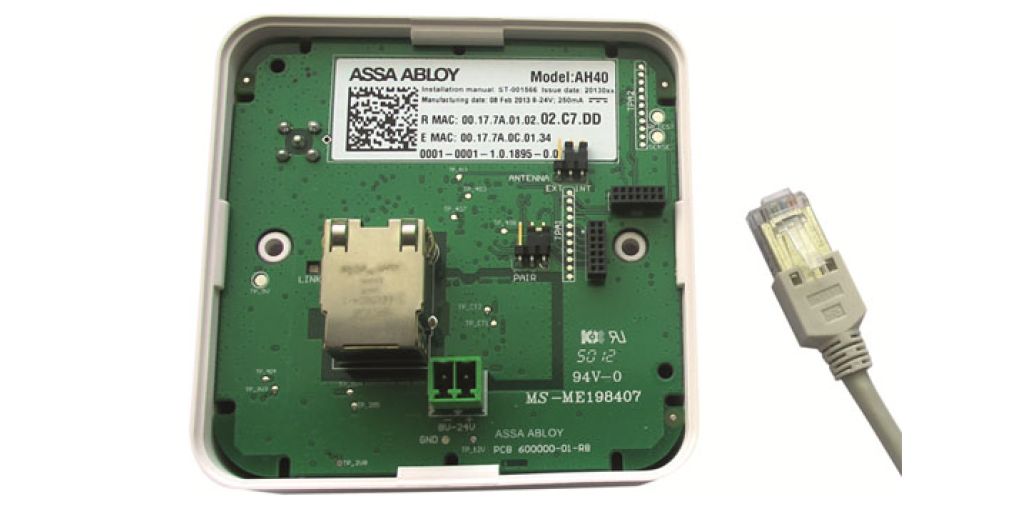

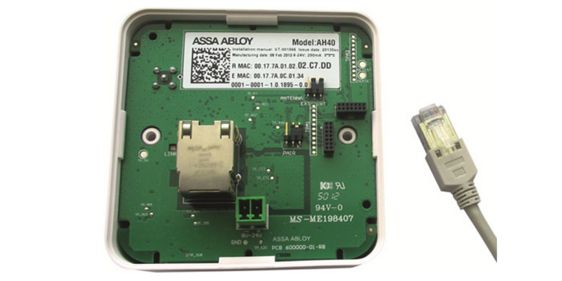

Aperio AH40 HUB

HUB with Ethernet wired interface for fitting up to 16 Aperio radio locks. The HUB receives the card number read by the locks via radio communication and transmits it to the SC-1000 controller via an Ethernet interface.

After evaluating the access control, it signals the decision back to the lock. Power supply: 8-24 VDC or POE; operating distance from locks: 5 -25 m; protection: IP20; operating temperature: + 5 ° C to + 35 ° C; relative humidity: <95% non-condensing; dimensions: 82 mm x 82 mm x 37 mm
