LINTAP-12-20

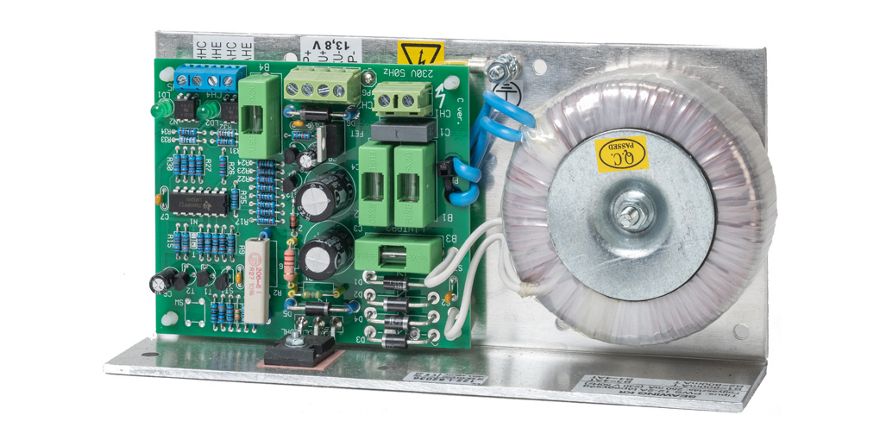

The LINTAP2-12V / 2A uninterruptible power supply card has been developed for safety systems that require a nominal DC voltage of 12VDC. With the above type number, it can be used without boxing, primarily for replacement or for placement in an outdoor, watertight mounting box.

Available indoors under the PWS-12-20 model number.

In the event of a power failure, the power supply immediately switches to battery mode, ensuring uninterrupted system performance. 1 12V battery can be connected, the use of which is mandatory, because the perfect operation of the power supply is only guaranteed when used in conjunction with the battery.

The power supply unit has 2 optocoupler fault outputs, from which a signal can be sent to the connected access control system in the event of a 230V mains failure or battery failure. 90% (non-condensing) and the ambient temperature is between -10 ° C and + 35 ° C. The power supply is rated IP00 and may only be used built-in where adequate contact protection and natural air cooling must be provided. The power supply card may only be placed in a tamper-proof, sealed disk box as part of a security system.
